Surveyors Information - Geodetic Control Data

You can obtain information on permanently monumented control points including horizontal control, vertical control, High Accuracy Reference Network (HARN) stations, Calibration Baselines and retrieval software from the National Geodetic Survey (NGS).

To plot NGS published control points in Google Earth, you can use DSworld, available from the NGS User Contributed software download page. Download kml files of control points by state, county, and type ​ here.

Maryland High Accuracy Reference Network (HARN)

Maryland Harn

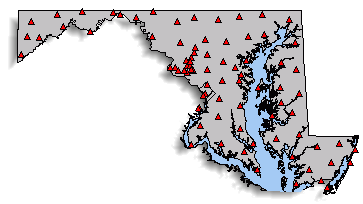

The map above shows the location of High Accuracy Reference Network (HARN) points in Maryland. The position of these points was determined by GPS observations and have a stated accuracy of 1.0 to 0.1 parts per million. NGS published these monuments as part of the North American Datum (NAD) of 1983, 1991 adjustment. The Maryland Department of Transportation State Highway Administration (MDOT SHA) uses these points and this horizontal datum for our existing projects.

Future Datums NGS is preparing a new Horizontal and a new Vertical Datum in the year 2025 to replace the NAD of 1983 and the North American Vertical Datum (NAVD) of 1988. MDOT SHA is aware of this change an is making plans on how to address it.

For more information on the new datums click here.

Control Points

MDOT SHA uses methods from Static Post-processed Global Navigation Satellite System (GNSS), formerly known as Global Positioning System (GPS), to establish survey control points for highway development and system preservation projects. We typically use 5/8" rebar with caps for GPS control points. The horizontal coordinates are in the Maryland State Plane Coordinate System on the North American Datum of 1983, 1991 adjustment (NAD 83/91). The vertical coordinate, if applicable, is on the North American Vertical datum of 1988 (NAVD 88). There is an extensive network of points available for the public surveying community. Download a KML file to plot MDOT SHA GPS Control points in Google Earth or another mapping product (links to the images are not currently available; contact us with a point name and general location and we'll provide the information).

The file is available for download here  (29​9 Kb).

For additional information, contact ​ MDOT SHA Control Points.

EDM Calibration Baselines in Maryland

Calibration Baselines in Maryland

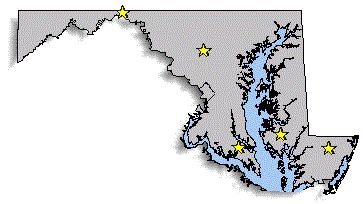

The map above shows the approximate location of the EDM (Electronic Distance Measuring system) calibration baselines located in Maryland. A calibration baseline consists of a set of very stable survey monuments that are accurately measured using specialized equipment. By comparing their results with the values published for the monuments, surveyors can verify the accuracy of their equipment.

Note: ​A new baseline has been installed in Warwick, Cecil County however that information is not available on the NGS website as of yet. For information about it please contact MDOT SHA Plats and Surveys Division

Calibration Baselines in Aberdeen and Hagerstown were destroyed by construction. One or two of the marks in each may remain, but they are unsuitable for calibration.

​Name Location Latitude Longitude
Cambridge CBL Dorchester County 38 35 76 08
Hancock CBLWashington County 39 43 77 44
Howard County CBL Howard County 39 15 76 56
Leonardtown CBL St. Mary's County 38 1976 33
​​​Pittsville CBL St. Wicomico County 38 23 75 23
​​Warwick CBL Cecil​'s ​County 39 38 75 79​
​ The Calibration Baseline data is available here.

The Calibration Baseline data for Warwick County is available here.

To obtain information or to report an issue with MDOT SHA and/or NGS geodetic survey control products contact:

Erik Donald
Maryland Department of Transportation
State Highway Administration
211 East Madison Street
Baltimore, MD. 21203
410-545-8976 (phone)
410-209-5022 (fax)
